HR series lime shaft kiln is specially designed for production of high reactivity quicklime, which is an innovative kiln where the cooling of the lime and the calcination process are completed under positive pressure.
Product Description

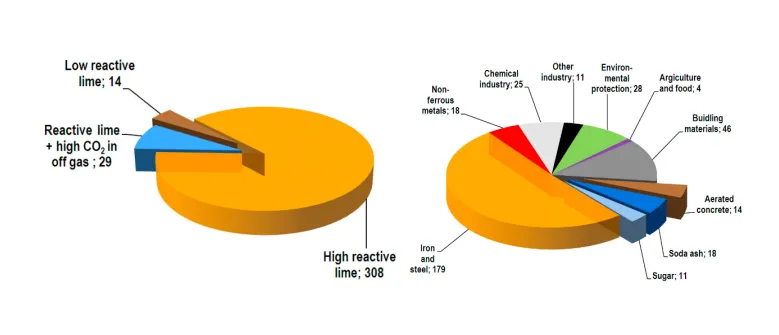

The above figures show more than 80% of the burnt lime are high reactive lime, during which the iron and steel industry is definitely the largest consumer. Lime plays an important role in several process steps in the steel industry: one essential application is the production of pig iron. Here, lime is used as an additive for the sintering of ores before they are melted in the blast furnace. The high reactivity of quicklime is desired so that it can react as quickly as possible with the impurities of the molten iron and form slags.
HR series lime shaft kiln is specially designed for production of high reactivity quicklime, which is an innovative kiln where the cooling of the lime and the calcination process are completed under positive pressure. Capacity of HR series lime shaft kiln is from 100 TPD to 500 TPD.
HR series lime shaft kiln production line consists of feeding system, loading system, limestone distributor, calcination system, quicklime discharging system, dust removing system, final product silo, PLC control system.
TECHNICAL DATA OF HR SERIES LIME SHAFT KILN
| NO. | ITEM | DATA |
| 1 | MODEL | HR100, HR200, HR300, HR400, HR500 |
| 2 | CAPACITY | 100 TPD TO 500 TPD |
| 3 | FUEL | COAL, NUTRAL GAS, COAL GAS, BLAST FURNACE GAS |
| 4 | DIMENSIONS OF KILN | OUTER DIA: 5.0-7.8M, INNER DIA: 3.0-5.8M HEIGHT: 21-31M |
| 5 | POWER | 150 TO 490 KW |
| 6 | INPUT SIZE | 30-60MM, 40-80MM |
| 7 | LIME REACTIVITY | HIGH REACTIVITY, MEDIUM REACTIVITY |
| 8 | APPLICATIONS | IRON AND STEEL, CHEMICAL, ENVIRONMENTAL PROTECTION, AGRICULTURE |
